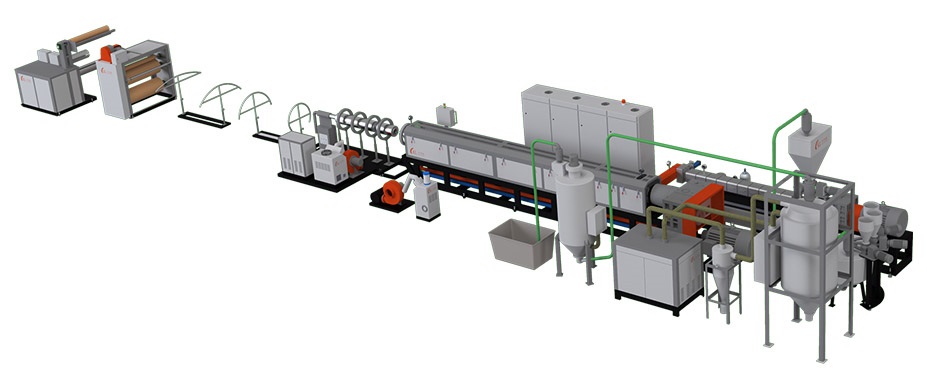

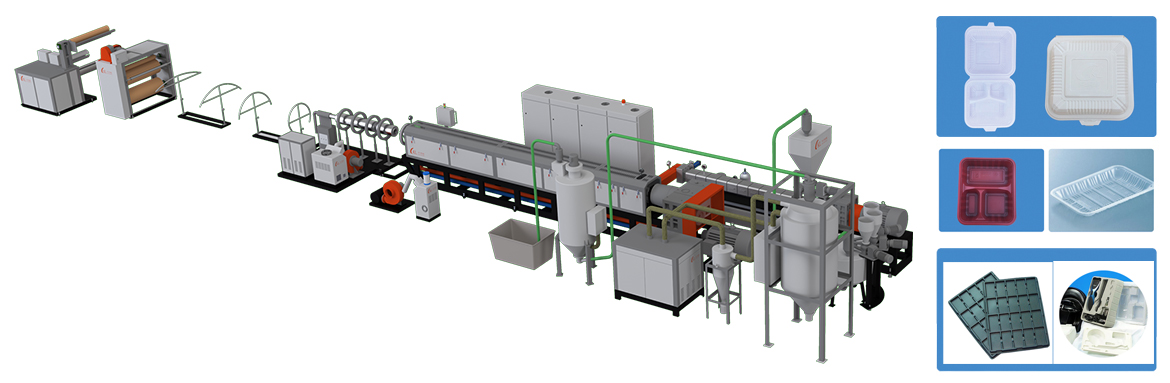

PET发泡挤出机
本设备用于PET高发泡产品 的生产，PET发泡材料是一 种具有闭孔结构的、可再 生的热塑性聚合物泡沫。 它具有阻燃、防烟、无毒 等优良性能。PET高发泡产 品生产线成本适中，发泡 倍率更高。 This equipment is used in the production of high-foam PET products. PET foam is a thermoplastic polymer foam with a closed-cell structure that is renewable. It has excellent properties such as flame retardancy, smoke prevention, and non-toxicity. The production line of high-foam PET products has a moderate cost and a higher foaming ratio.
提示：按住表格左右滑动查看更多机型参数
| PS快餐盒成型机型号参数表 | |||
| 型号 Model | 单位Unit | SJΦ65*2-Φ130 | SJΦ75*2-Φ150 |
|
螺杆直径 Screw diameter |
MM | Φ65*2-Φ130 | Φ75*2-Φ150 |
|
螺杆速度 Screw speed |
M | 30 | 30 |
|
片材宽度 Width of sheet |
MM | 800-1300 | 800-1300 |
|
片材厚度 Thickness of sheet |
MM | 1-3 | 1-3 |
|
片材密度 Density of sheet |
MM | 0.13-0.5 | 0.13-0.5 |
|
产量 Output |
KG/H | 200-250 | 300-350 |
|
功率 capacity |
KW | 200 | 250 |
|
发泡倍率 Foaming time |
Times | 5-10 | 5-10 |
|
压缩空气 Compressed air |
M3/H | 1 | 1 |
|
耗水量 Water consumption |
M3/H | 3 | 3 |
|
中心高 Hight of center |
M | 1.1 | 1.1 |
|
占地面积 Occupied area |
M | 28*6*4 | 32*6*4 |
|
整机重量 Machine weight |
T | 25 | 30 |
